ASSEMBLY OF THE FRAME
;
With the Frame you get:
- 2 tank supports.
- 4 screws: 8 x 20 screw to fix the tank supports to the Frame. P
- 2 screws: 8 x 40 to install the the Wing and counterlungs

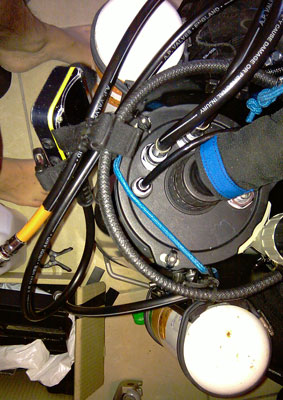

-1 screw to secure the cannister. The blue elastic rope (provided) is for me enough (like on the last picture of this page).

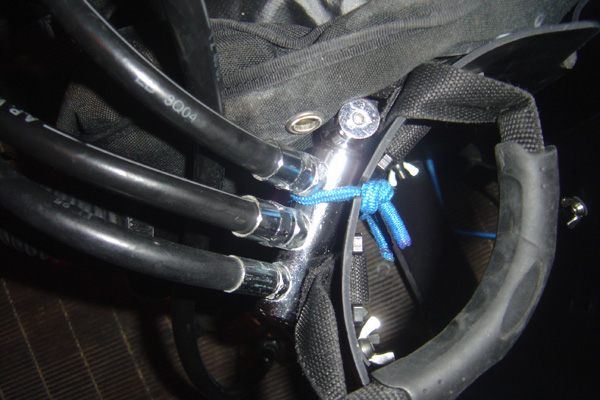

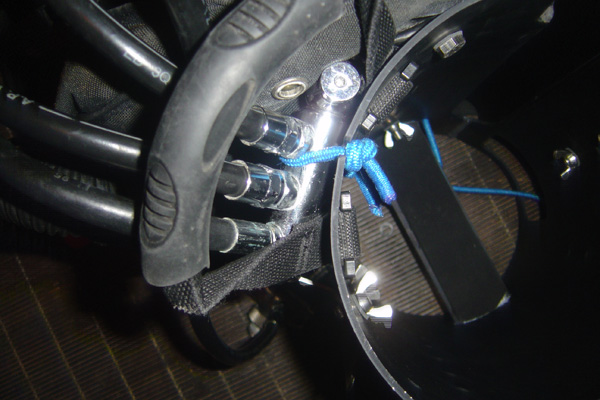

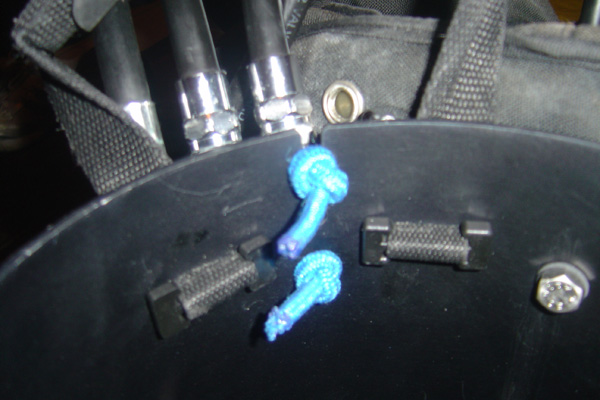

To Fix the manifold there is 2 holes that you can use + a cutting in U under the plastic protection. If you plan to use it just cut the plastic. If you do so it will be easier to remove the manifold. I just use an elastic rope (and it works fine !).
On the pictures you can see how to fix the AP Valves handle.
